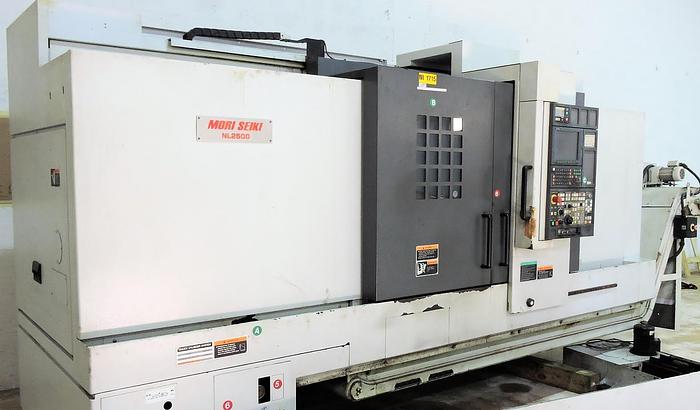

Mori Seiki NL-2500mc/1250 (2006)

Mori Seiki NL-2500mc/1250 (2006)

Contact us for price

Illinois

orCall 815-759-5000

Description

. Msx-850III Cnc Control . Live tooling . Long Bed (51.3” Z-axis) Full specs: Max. Swing Over Bed: 36.37" Max. Swing Over Cross Slide: 29.7" Max. Turning Diameter: 14.0" Max. Turning Length: 27.7" X-Axis Travel: 10.24" Z-Axis Travel: 51.3" Spindle Through Hole: 3.58" Max. Bar Capacity: 3.1" Spindle Nose: JIS A2-8 Min. Spindle Indexing Angle: 0.001 Degree Rapid Traverse Rate: 1181 IPM Spindle Speed: 4000 RPM Tool Capacity: 12TRT Spindle Motor: 26 HP Rotary Tool Motor: 7.5 HP Electrics: 220/3/60/ 35KVA Equipped with: MSX-850III CNC Control 10" Chuck and (6) Live Holders Live Milling C-Axis Tool Presetter Turbo Model 5475-8866 Chip Conveyor Dakin Inverter

Specifications

ManufacturerMori Seiki NL-2500mc/1250 (2006)
ConditionUsed
