2001 Mori Seiki ZT-2500Y

2001 Mori Seiki ZT-2500Y

Contact us for price

Illinois

orCall 815-759-5000

Description

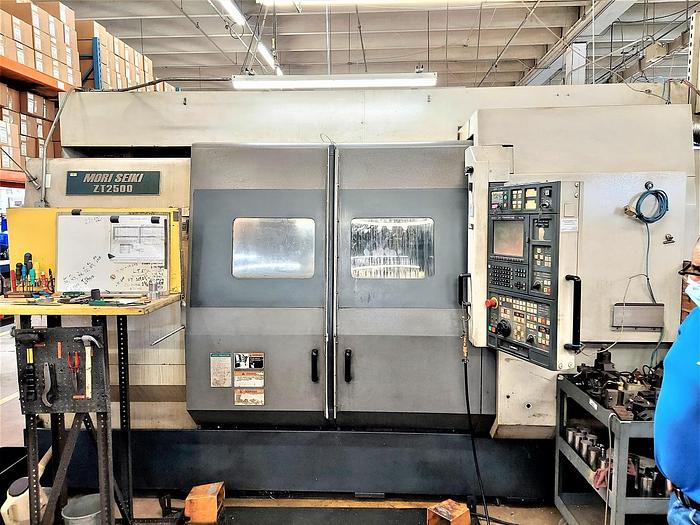

Mori Seiki Model ZT-2500Y 8-Axis CNC Lathe with Live Tool, Sub Spindle
                                Twin Turret

  Specifications:


  Maximum Turning Diameter:               14.9"
  Maximum Distance Between Spindles:      51.2"
  Maximum Turning Length:                 14"
  Maximum Bar Capacity:                   2.8"
  X1-Axis Travel:                         11"
  X2-Axis Travel:                         Lower Turret           7.9"
  Z1-AXIS Travel:                         37.8"
  Z2-Axis Travel:                         Lower Turret           38.8"
  Y-Axis Travel:                          +/- 2.9"
  C-Axis Indexing:                        0.001 Degree
  Spindle Speeds:                         4,000 Rpm
  Spindle Nose (Both):                    A2-8
  Hole Through Spindle:                   3.5"
  Number of Tool Positions:               12 Each Turret
  Rotary Tool Speed Range:                Up to 4,000 Rpm
  X, Z, & B-Axes Rapid Traverse Rate:     945 Ipm
  Y-Axis Rapid Traverse Rate:             472 Ipm
  Approximate Machine Weight:             29,000 Lbs.


  Equipped with:

  Mitsubishi MSC 501 Cnc Control
  Tool Presetter
  Chip Conveyor
  Live Milling on all 12 Stations (both)
  Miscellaneous live tool holders ( about 6 live heads )
  Miscellaneous tool static holders
  (2) Electric Foot Pedals




  Serial No: 34                           Year Mfg. 2001


Specifications

ManufacturerMori Seiki
ModelZT-2500Y
Year2001
ConditionUsed
Stock Number6389
