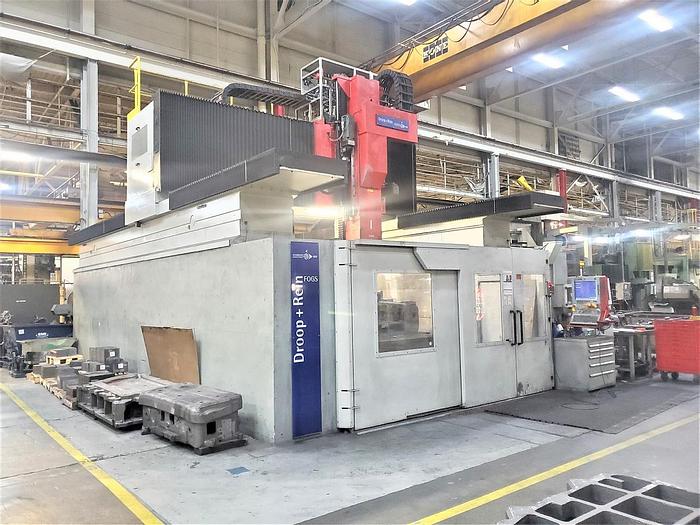

2013 Droop & Rein FOGS 3068C 5 Axis Gantry Style Machining Center (2013) FOGS 3068C

2013 Droop & Rein FOGS 3068C 5 Axis Gantry Style Machining Center (2013) FOGS 3068C

Contact us for price

orCall 815-759-5000

Description

Droop & Rein FOGS 3068C 5 Axis Gantry Style Machining Center (2013)


  Specifications (Preliminary)

  X Axis Travel:                          267"
  Y-Axis Travel:                          118"
  Z-Axis Travel:                          59"
  C-Axis:                                 n x 360 Degree
  B-Axis                       +/- 115 Degree
  Clamping Plate:                         118" x 236"
  Ram Section:                            23.6" x 24."
  Horiz. Clearance:                       4.090 mm  Between Columns
  Vert. Clearance:                        94" Clamping plate, Cross Rail
  Dist, Clamping Plate:                   Min. 27.5" spindle centre line, horiz. spdl
                               Max. 86.6"
  DIst. Clamping Plate         Min. 10.6" By Vert. Motor Spindle
                               Max. 69.6"
  Dist. Clamping Plate         Min. 7.8" spindle center by vert. motor spdl
                               Max. 66.9"
  Feed Rates:                             X-Axis           Up to 30 m/min
              Y-Axis           Up to 30 m/min
              Z-Axis           Up to 30 m/min
              C-Axis           4.320 degree/min
              B-Axis           4.320 gefree/min
  Rapid Feed Rates:                       X-Axis     Up to 40 m/min
                    Y-Axis     Up to 40 m/min
                    Z-Axis     Up to 40 m/min
                    C-Axis     4.320 degree/min
                    B-Axis     4.320 degree/min
  Machine weight, Approx.      209,000 Lbs.
  Milling Spindle Motor:                  26 Hp
  Electrics:                              600/3/60/115 Amps



  Equipped With:


  Fidia C20 Cnc Control
  30 tool Automatic Tool Changer
  Fork-type head for adaptation of different motor  milling spindles
  Fixation of the spindles in the fork-type head by hydraulic clamping
  Temperature sensor for length compensation
  B-axis (swivel motor milling spindle, continuous)



Specifications

ManufacturerDroop & Rein FOGS 3068C 5 Axis Gantry Style Machining Center (2013)
ModelFOGS 3068C
Year2013
ConditionUsed
Stock Number6388
