1999 Brother Tc-31A

Contact us for price

Illinois

orCall 815-759-5000

Description

. Cnc AOO Control
. 16,000 Rpm
. 26 Atc
. Loaded with tooling.

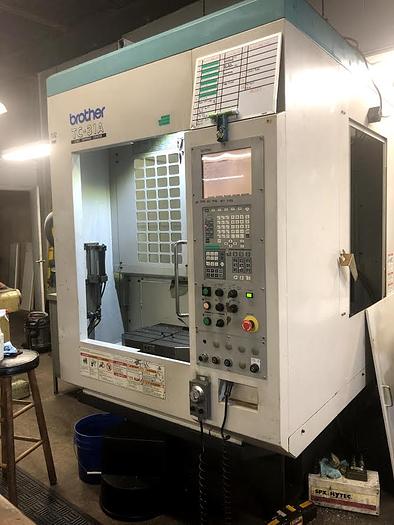

1999 Brother TC31A
Year: 2/1999
CNC A00 Control
G-Code and Conversational
RS232
16k RPM Spindle
BT30 taper
6k RPM max tapping speed
26 tool double arm tool changer
New Drawbar Installed and Tested 05/2019

Travels:
X 13.78”
Y: 9.84”
Z: 14”
2-Pallet Station, Quick Change Table
1968 IPM Rapids
T-T 1.5 secs

Notes:
Coolant Pump with 30 gallon tank
Remote Jog Handle

Included:
(2) Bock 4” Double Vices
(2) SPX Hydraulic units for hydraulic workholding applications (Never used by me)
(2) 7075 Alum Subplates, ⅞” thick, tapped ⅜”-16, with ⅜” dowel holes, spaced 1.00” b/w centers
(3) Nikken C7/8-75 Milling Chuck Holders
(6) Nikken SK25-90 Holders
(7) Nikken SK16-90 Holders
(1) Nikken SK16-60 Holder
(2) Nikken MMC8-105 Holders
(23) Nikken SK10-90 Holders
(5) Nikken SK10-60 Holders
(1) Nikken SK10-45 Holder
(3) Nikken SK6-90 Holder
(2) Nikken NPU8 Drill Chucks
(11) Nikken SK6 Collets
(60) Nikken SK10 Collets
(13) Nikken SK16 Collets
(11) Nikken SK25 Collets
(15) Nikken 7⁄8C Milling Collets
Various Pull Studs
(2) Swiss Pibomulti CEPO8L1 6k RPM Right Angle Head

Specifications

ManufacturerBrother
ModelTc-31A
Year1999
ConditionUsed
