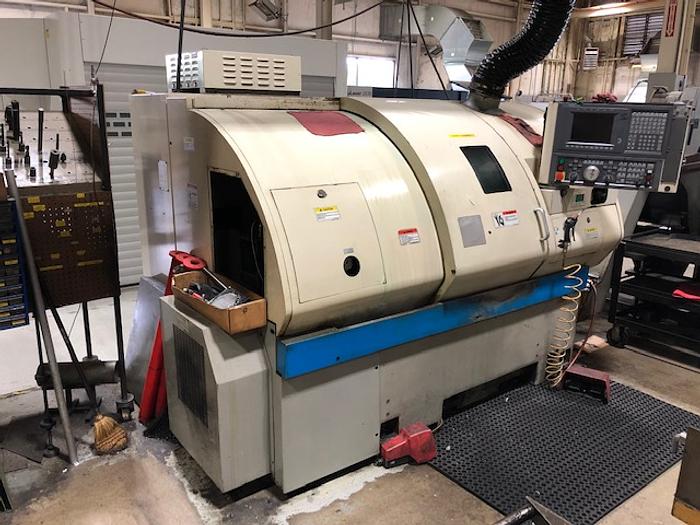

Okuma Crown 762S Big Bore

Contact us for price

Illinois

orCall 815-759-5000

Description

.Osp 700L Cnc Control
. 10" Chuck
. Big Bore
. Chip Conveyor
----------------------------------------------------------------

Main specs:
Okuma Crown 762S-BB Specifications:
Max Turning Diameter: 10.63″
Max Turning Length: 19.68″
Max Bar Capacity: 2.65″
Swing Over Bed: 21.65″
Distance Between Centers: 22.29″
X Axis Travel: 7.28″
Z Axis Travel: 20.47″
Rapid Traverse X Axis: 590 IPM
Rapid Traverse Z Axis: 787 IPM
Spindle Nose: A2-8
Spindle Bore: 3.15″
Spindle Speed: 65-3500 RPM
Spindle Motor: 22 HP
Turret Capacity: 12 Stations
Turret Index Time: 1 Second
Tailstock Quill Dia.: 3.54″
Tailstock Quill Stroke: 4.72″
Tailstock Taper: MT-5

Specifications

ManufacturerOkuma Crown
Model762S Big Bore
ConditionUsed
