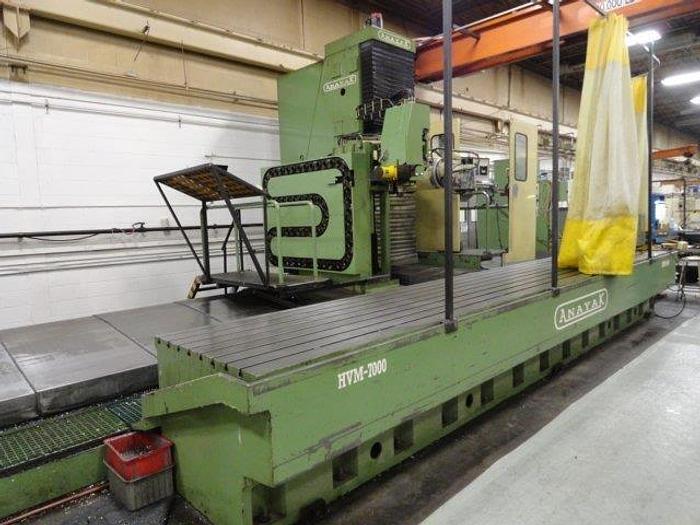

Anayak CNC Vertical Machining center (1995)

Contact us for price

Illinois

orCall 815-759-5000

Description

. Fanuc OM Cnc Control
. Bed type movable column
. Universal head
. X-248”, Y-47”, Z-84”
. 20” Tsudakoma 4th Axis

ANAYAK CNC BED TYPE MOVABLE COLUMN UNIV. HEAD VERTICAL MACHINING CENTER
MODEL #HMV7000
NEW 1995

TABLE SIZE -------------------------------- 43-3/4" X 277-3/4"
TRAVEL, LONGITUDINAL ---- ( X ) ----------- 248"
TRAVEL, CROSS ----------- ( Y ) ----------- 47"
TRAVEL, VERTICAL -------- ( Z ) ----------- 84"
SPINDLE TAPER ----------------------------- CAT 50
SPINDLE SPEEDS, VARIABLE ------------------ TO 2,000 RPM
RAPID TRAVERSE RATE ----------------------- 314 IPM
TOOL CHANGER STATIONS --------------------- 60
APPROXIMATE MACHINE WEIGHT ---------------- 115,460 LBS
APPROXIMATE MACHINE DIMENSIONS ------------ 472"(LR) X 186"(FB) X 180"(H)

EQUIPPED WITH ---

UNIVERSAL VERTICAL HEAD AUTOMATIC LUBRICATION SYSTEM
FANUC OM CNC CONTROL FULL LENGTH CHIP CONVEYOR
60 POSITION AUTOMATIC TOOL CHANGER RS232 PORT
COOLANT PUMP
20" TSUDAKOMA 4TH AXIS ROTARY TABLE #RNCM-500R

Specifications

ManufacturerAnayak CNC Vertical Machining center (1995)
ConditionUsed
