Kia Kiaturn 31 ( 1996 )

Contact us for price

Illinois

orCall 8157595000

Description

. Fanuc OTC Cnc Control
. 10” Chuck
. Prog. Tailstock
. Tool Setter

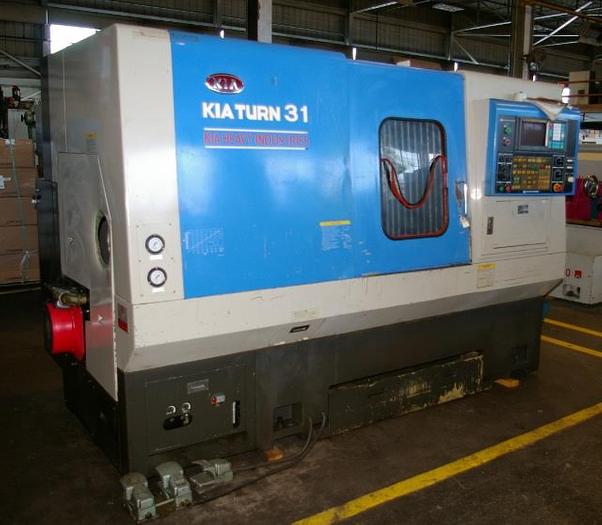

KIA "KIATURN 31" CNC TURNING CENTER
MODEL KIATURN 31
S/N KT31041 NEW 1996

MAXIMUM SWING ----------------------------- 27.2"
MAXIMUM MACHINING DIAMETER ---------------- 15.7"
MAXIMUM CUTTING LENGTH -------------------- 25.7"
TRAVEL ---------- ( X ) ------------------- 8.7"
TRAVEL ---------- ( Z ) ------------------- 26.8"
SPINDLE THROUGH HOLE ---------------------- 2-1/2"
TURRET STATIONS --------------------------- 10
MAIN DRIVE MOTOR -------------------------- 20/25 HP
APPROXIMATE MACHINE WEIGHT ---------------- 15,400 LBS
APPROXIMATE MACHINE DIMENSIONS ------------ 119"(LR) X 78"(FB) X 80"(H)

EQUIPPED WITH ---

FANUC OTC CNC CONTROL
10" 3 JAW HYDRAULIC CHUCK
TAILSTOCK - PROGRAMMABLE
CHIP CONVEYOR
COOLANT SYSTEM
TOOL SETTER

Specifications

ManufacturerKia Kiaturn 31 ( 1996 )
ConditionUsed
