Haas SL-20T

Contact us for price

Illinois

orCall 815-759-5000

Description

. Haas Cnc
. 8” Chuck
. Prog. Tailstock

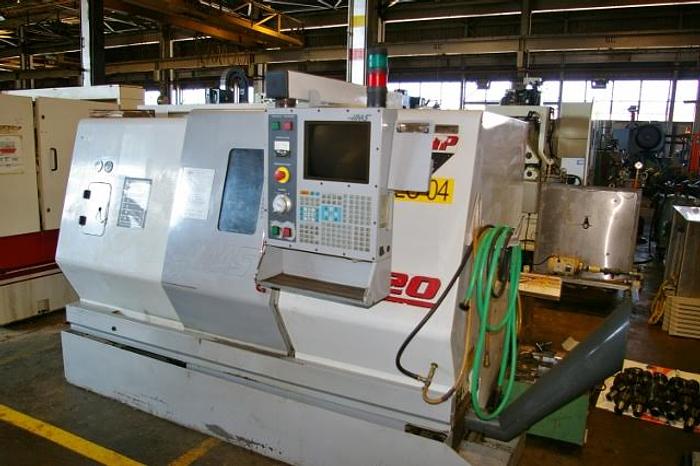

HAAS SL20T CNC TURNING CENTER
S/N 63100 NEW 2000

SWING ------------------------------------- 23"
X AXIS TRAVEL ----------------------------- 8.45"
Z AXIS TRAVEL ----------------------------- 20"
RAPID ------------------------------------- 710 IPM
MAXIMUM BAR CAPACITY ---------------------- 2"
MAXIMUM TURNING DIAMETER ------------------ 10.3"
MAXIMUM TURNING LENGTH -------------------- 20"
SPINDLE SPEEDS ---------------------------- 4,000 RPM
TURRET STATIONS --------------------------- 10
MAIN DRIVE MOTOR -------------------------- 20 HP
APPROXIMATE MACHINE WEIGHT ---------------- 9,000 LBS
APPROXIMATE MACHINE DIMENSIONS ------------ 126"(LR) X 74"(FB) X 72"(H)

EQUIPPED WITH ---

20 HP VECTOR DUAL DRIVE
PROGRAMMABLE TAILSTOCK
8" CHUCK
CHIP AUGER
TOOL PRESETTER
SPINDLE ORIENTATION
BIH BARFEED INTERFACE
RIGID TAPPING
DUAL FOOT PEDAL CONTROL
MISCELLANEOUS TOOLING
MISCELLANEOUS JAWS

Specifications

ManufacturerHaas SL-20T
ConditionUsed
