Haas HL-2

Contact us for price

Illinois

orCall 8157595000

Description

. Haas Cnc
. 8” Chuck
. Prog. Tailstock

HAAS #HL2 CNC TURNING CENTER
S/N 60132 NEW 1995

SWING OVER BED ---------------------------- 20"
SWING OVER CROSS SLIDE -------------------- 9.5"
DISTANCE BETWEEN CENTERS ------------------ 24"
MAXIMUM CUTTING DIAMETER ------------------ 10"
MAXIMUM CUTTING LENGTH -------------------- 20"
BAR CAPACITY, MAXIMUM --------------------- 2"
SPINDLE SPEED TO -------------------------- 3750 RPM
SPINDLE NOSE ------------------------------ A2-6
SPINDLE BORE ------------------------------ 3"
TRAVELS --------- ( X ) ------------------- 8.6"
TRAVEL ---------- ( Z ) ------------------- 20"
SPINDLE DRIVE --- ( PEAK ) ---------------- 15 HP A.C.
APPROXIMATE MACHINE WEIGHT ---------------- 9,000 LBS
APPROXIMATE MACHINE DIMENSIONS ------------ 98"(LR) X 71"(FB) X 78"(H)

EQUIPPED WITH ---

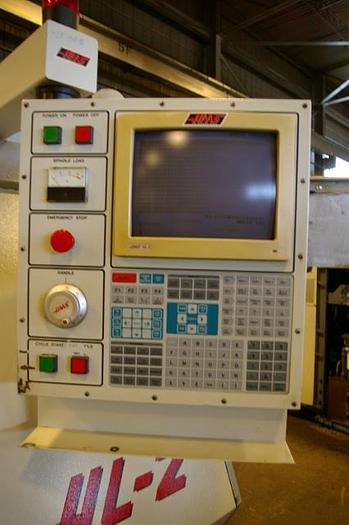

HAAS CNC CONTROL
12 STATION TURRET
PROGRAMMABLE TAILSTOCK
SYNCHRONOUS TAPPING
CHIP CONVEYOR
COOLANT SYSTEM
8" 3 JAW HYDRAULIC CHUCK

Specifications

ManufacturerHaas HL-2
ConditionUsed
