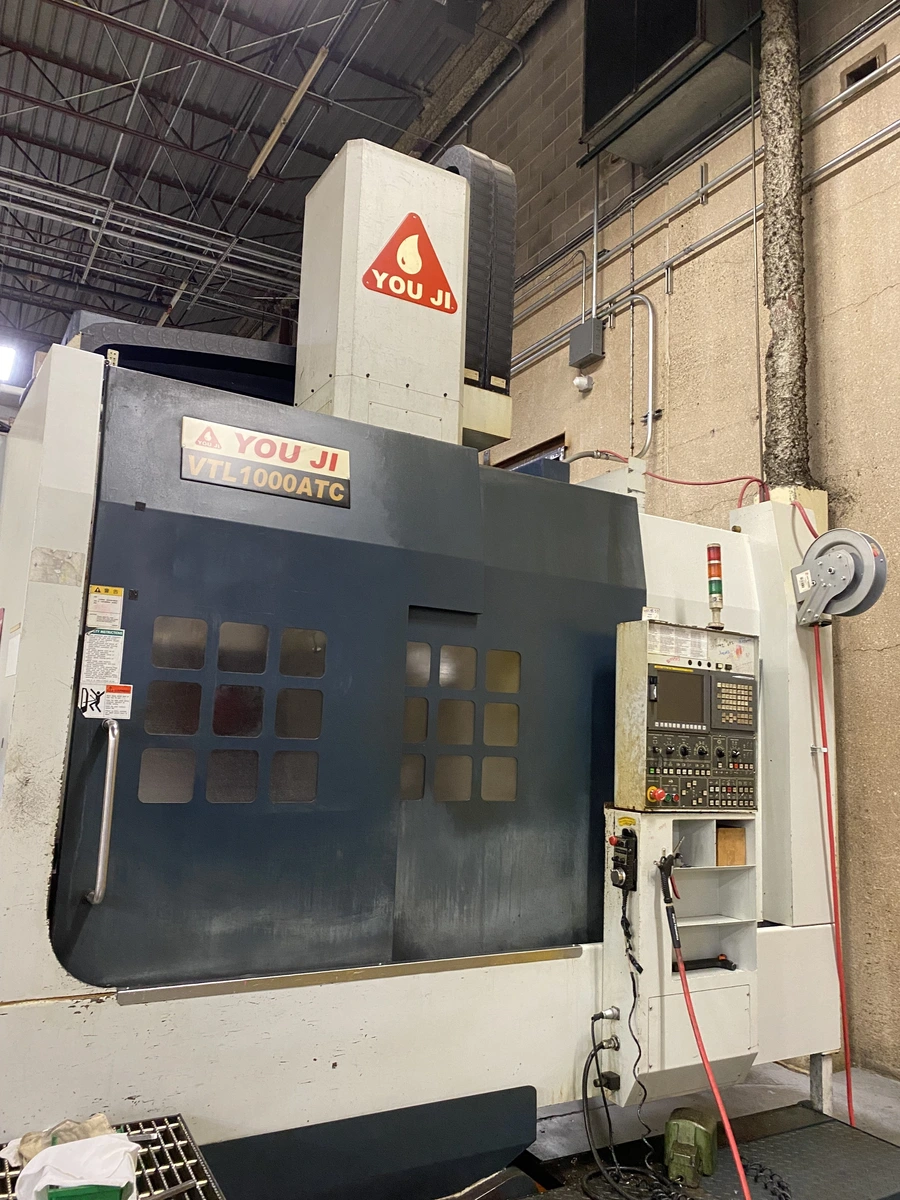

2012 You-JI VTL 1000

40" chuck, 12 ATC, Fanuc 18iTB CNC

Specifications (Preliminary)

Max Swing: 53"
Max Cutting Dia:: 47"
Max Cross Travel (X): 15.7", Plus 30.5"
Max Clearance Under Ram: 49.8"
Cross Rail Movement: 19.7"
Max Table Load: 8,800 Lbs
Vertical Travel Of Ram: 31.5"
Table Speed: 600rpm
Rapid Traverse Rate:: 472-X, 393-Z Ipm
Equipped With:: Fanuc 18iTB CNC Control, 40" 4 Jaw Chuck Chuck, 12 Station ATC, Hi Pressure Coolant Pump, Chip Conveyor, Full Enclosure, ,Box Way Construction, 50 HP Main Motor Drive
